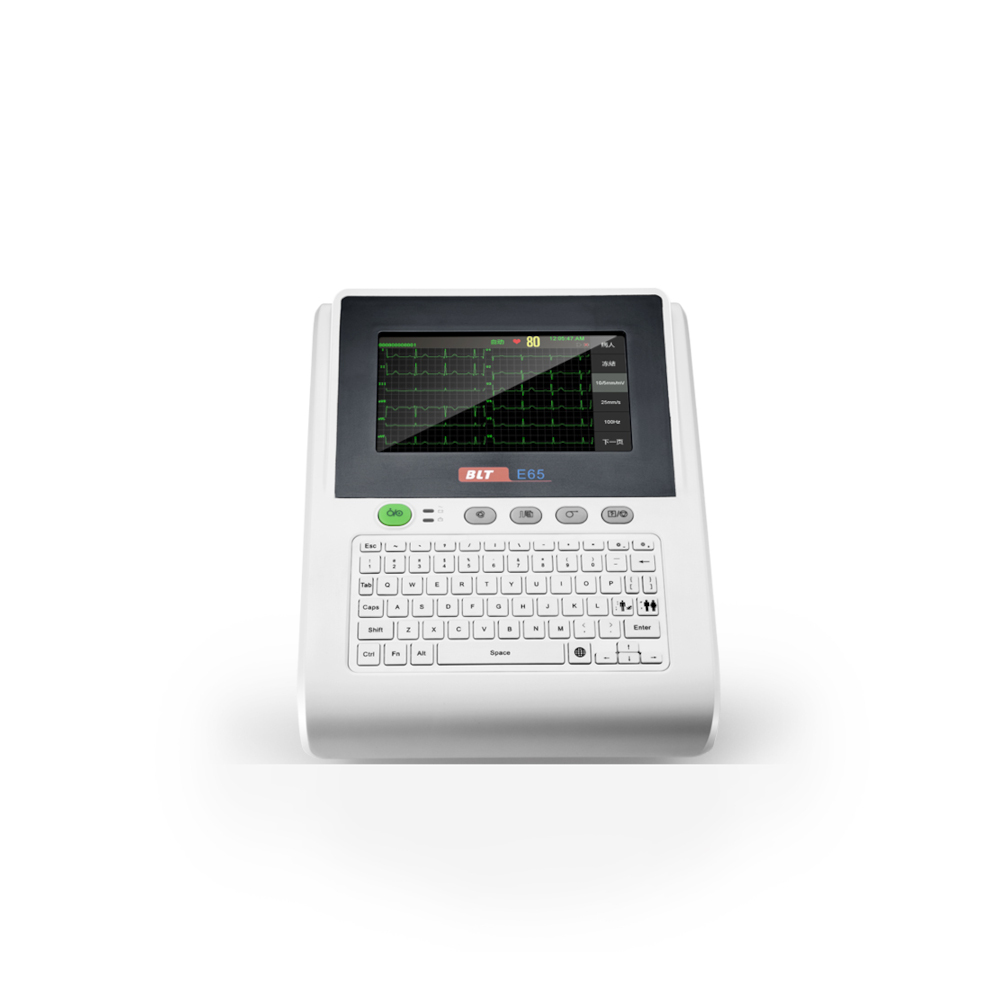

E65 (12 channel)

Product Details

  • 8-inch color widescreen LCD monitor, 12-channel synchronous display with the screen;
  • Using the computer keyboard input and full-screen touch operation design;
  • Using 24-bit high-precision synchronous data acquisition, with low noise, high dynamic range, wide frequency response characteristics;
  • The use of excellent performance of the linear phase of the all-digital filter, high-fidelity waveform output;
  • The use of innovative fast baseline correction algorithm, can be stable within 1-3s baseline;
  • ECG automatic analysis system through ECE CSE ECG database test;
  • The use of high-definition low-noise thermal recorder, put the stack paper automatic positioning function, without human intervention;
  • Built-in high-energy lithium battery, can print 500 copies of ECG data;
  • Hidden portable handle design, mobile, easy to carry;
  • Using high-precision data storage, support for internal Flash, large-capacity U disk, SD card storage;
  • Support manual, automatic, rhythm, R-R, off five recording modes, Minnesota code diagnostic information output;
  • Support ECG waveform freeze and automatic playback;
  • Support external USB printer, bar code scanner;
  • Support networking, support PDF, Dicom (optional), FDA-XML (optional) format output
